Rhinoman Fitment Instructions for Ford Ranger (T6) & Mazda BT-50 (2011-2021) Single Cab
Fitment Instructions
for Ford Ranger (T6)
& Mazda BT-50 (2011-2021)
Single Cab
RHINOLITE & COMMERCIAL
Fitment Kit Contents
Description
Quantity
Illustration
M5x20 Hexagonal Bolt
2
M8x30 Hexagonal Bolt
20
M8 Nylock Nut
8
M8 Body Washer
28
Cab Side Bracket LH
1
Cab Side Bracket RH
1
Cab Side M5 Washer
2
Tail Gate Bracket LH
1
Tail Gate Bracket RH
1
Required Tools
Description
Illustration
8mm Spanner
8mm Socket Wrench (Optional)
13mm Spanner
13mm Socket Wrench (Optional)
T40/T45 Torx Key/ Star Allen Key
Installation Time & Care Instructions
- Approx. 45 Minutes (Excluding the removal of any accessories from load bin)
- Before installation, ensure that your hands and workwear are clean from oil, grime & dirt.
- Ensure that the correct tools and PPE are used whilst installing the canopy. Clean the rear cab window before fitting the canopy.
- Torque all M5 fasteners to approx. 7Nm.
- Torque all M8 fasteners to approx. 28Nm.
Fitment Steps
Step 1
- Unpack all components and hardware from packaging: ensure that everything is accounted for as indicated above.
Step 2
- Remove any cab guards, roll bar, tonneau cover, sports bar etc. from vehicle.
Step 3

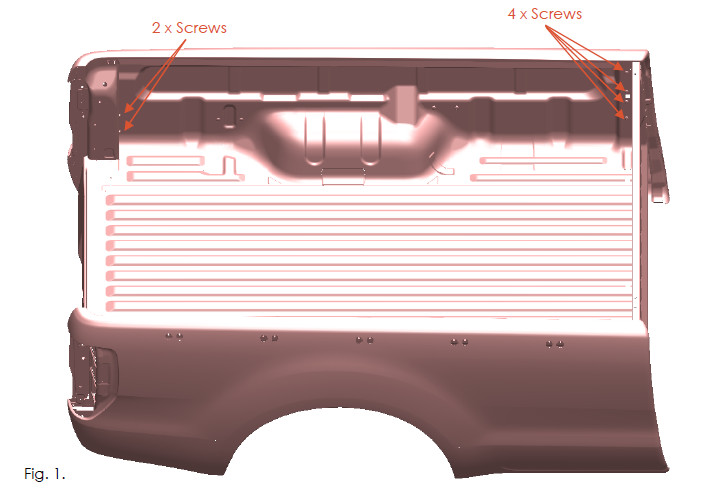

- Remove the Torx screws and factory-fitted tie-down hooks on both sides of the vehicle load bin, located as shown in Fig. 1.

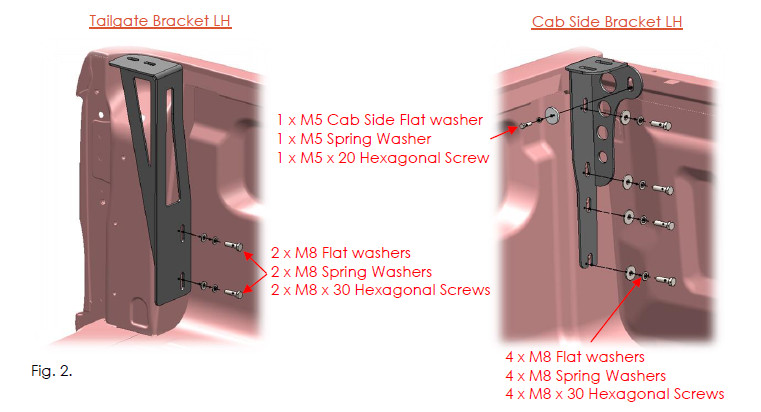

- Place each fitment bracket to align with the tie-down point holes and lightly secure each bracket in position as shown in Fig. 2.
Step 4
- Ensure that the rear cab window of the vehicle is clean, before loading the canopy onto the load bin.
- Fit the canopy to the load bin, align & space evenly.

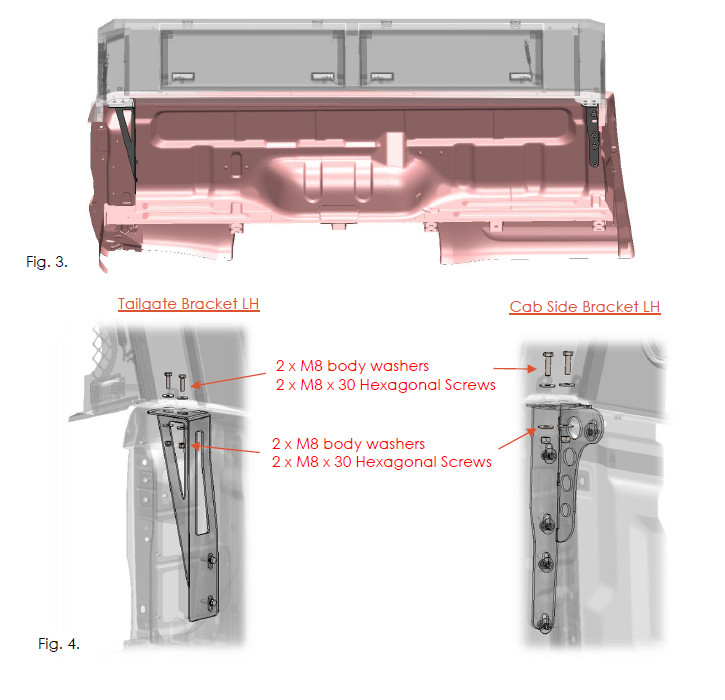

- Align the canopy fastening points with the brackets’ fastening points. Fig. 3
- When the canopy is resting on the load bin, adjust the brackets to achieve a gap of approx. 6mm between the canopy fastening surface and the bracket top surface.
- Secure the brackets to the load bin by fastening the bolts slowly & securely.
- Secure the canopy to the brackets using the bolts supplied, and tighten the bolts to secure the two surfaces firmly. Fig 4.
Step 5
- Trim sealing rubber on tailgate with knife or scissors.
- Check again for alignment of canopy on sides of loading bin.
- Check all bolts one final time.
- Enjoy your NEW Rhinoman all Aluminum Canopy.
WARRANTY, SERVICE & CARE GUIDE
- All Rhinoman products carry a comprehensive 2-year factory warranty.
- PLEASE NOTE: Your canopy will only be covered under warranty if it has been fitted by an approved Rhinoman fitment centre or agent.
- Please do inspect the fasteners on the fitment brackets every once in a while, to ensure that all bolts are still tight and properly secured.
